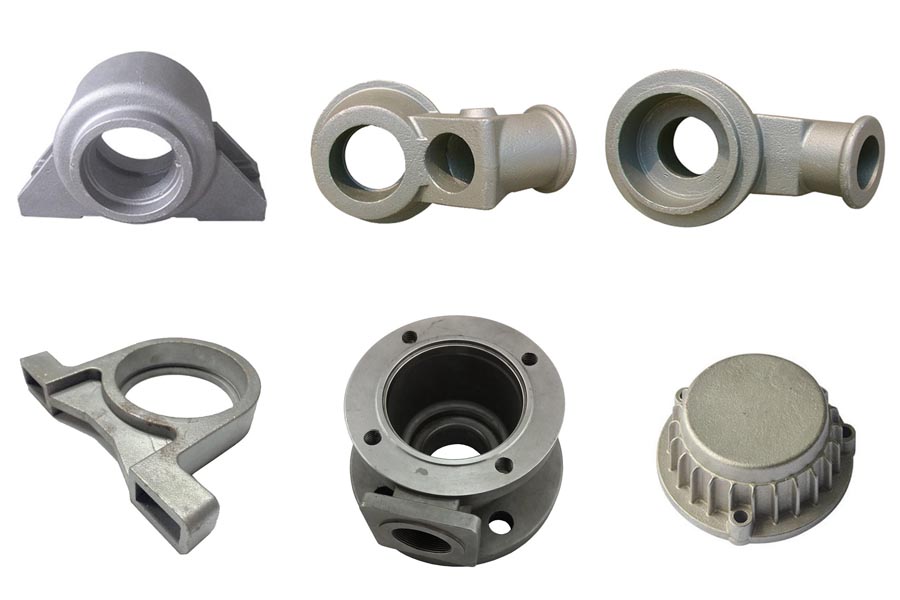

Silica sol lost wax steel casting is a popular manufacturing process used to produce high-precision metal parts. This method is widely used in the production of complex components for various industries, including aerospace, automotive, and medical. The process involves creating a wax model of the part, coating it with a ceramic shell, and then melting the wax out of the shell to create a mold. The mold is then filled with molten metal, which solidifies and takes the shape of the original wax model.
One of the main advantages of silica sol lost wax casting is its ability to produce parts with high accuracy and precision. This is due to the fact that the process allows for the creation of intricate shapes and fine details that would be difficult or impossible to achieve with other casting methods. Additionally, the use of silica sol as the binder material for the ceramic shell provides a smooth surface finish and excellent dimensional stability.
Overall, silica sol lost wax casting is a versatile and reliable process that can be used to produce a wide range of metal parts with high precision and accuracy. Its ability to create complex shapes and fine details makes it an ideal choice for industries that require high-quality components, such as aerospace and medical.
What is Silica Sol Lost Wax Steel Casting?
Silica sol lost wax steel casting is a process of creating steel castings using the lost wax casting method, which is also known as investment casting. This process involves creating a wax pattern of the desired part, coating it with a ceramic shell, melting the wax out of the shell, and then pouring molten steel into the cavity left by the wax. The ceramic shell is then removed, and the steel casting is left behind.
Silica sol is a type of binder used in the investment casting process. It is a water-based binder that contains silica particles. The silica sol is mixed with a refractory material, such as zircon sand, to create a ceramic shell around the wax pattern. Silica sol is preferred over other binders because it has a low viscosity, which allows it to penetrate small details in the wax pattern and create a smooth surface finish on the final casting.
The use of silica sol in lost wax steel casting has several advantages. First, it produces castings with high dimensional accuracy and a fine surface finish. This is because the low viscosity of the silica sol allows it to flow into small details in the wax pattern, creating a highly detailed and accurate ceramic shell. Second, silica sol is compatible with a wide range of alloys, including stainless steel, carbon steel, and brass. This makes it a versatile choice for creating steel castings of various types and sizes.
In summary, silica sol lost wax steel casting is a process of creating steel castings using the lost wax casting method and a silica sol binder. This process produces high-quality steel castings with fine surface finishes and high dimensional accuracy.
Advantages of Silica Sol Lost Wax Steel Casting
Silica sol lost wax steel casting is a precise and efficient manufacturing process that offers several advantages over other casting methods. In the precision casting industry, silica sol casting is the main investment casting process for stainless steel castings and alloy steel castings. Here are some of the benefits of using silica sol lost wax steel casting:
High Dimensional Tolerance Grade
Silica sol lost wax steel casting is known for its high dimensional tolerance grade, which is up to CT4 – CT6. This means that the metal castings produced by this method have fine surfaces and high accuracy. The commonly used casting tolerance table for linear dimensions is CT6 according to ISO 8062, and wall thicknesses can reach CT7. This high level of precision makes silica sol casting ideal for producing complex and intricate parts that require tight tolerances.
Smooth Surface Finish
Silica sol lost wax steel casting produces metal castings with a smooth surface finish. This is because the process involves using a fine-grained refractory material to create the mold, resulting in a high-quality surface finish. The casting surface roughness is Ra 6.3 μm, which is suitable for most applications.
Versatility
Silica sol lost wax steel casting is a versatile manufacturing process that can be used to produce a wide range of parts and components. This method can be used to create parts with complex geometries, thin walls, and intricate details. It is also suitable for producing parts with a weight range of 0.005 – 120 kg and maximum dimensions of 1000 x 620 x 380 mm.
Cost-Effective
Silica sol lost wax steel casting is a cost-effective manufacturing process for producing high-quality metal castings. The process is highly automated, which reduces labor costs and increases production efficiency. Additionally, the process can be used to produce large quantities of parts at a lower cost per unit.
In summary, silica sol lost wax steel casting is a precise and efficient manufacturing process that offers several advantages over other casting methods. It is known for its high dimensional tolerance grade, smooth surface finish, versatility, and cost-effectiveness. These benefits make it an ideal choice for producing complex and intricate parts that require tight tolerances.
Silica Sol Lost Wax Steel Casting Process
The Silica sol lost wax steel casting process is a precision casting method that involves creating wax patterns, molding material, gelling, and ceramic shell. This process is suitable for producing small and medium-sized steel castings with high dimensional accuracy and excellent surface finish. Here are the sub-sections of the silica sol lost wax steel casting process:
Wax Patterns
The first step in the silica sol lost wax steel casting process is to create a wax pattern of the desired part. The wax pattern is made by injecting molten wax into a metal mold. The mold is designed to create a wax pattern that is an exact replica of the final part. The wax pattern is then removed from the mold and assembled with other wax patterns to create a wax tree.
Molding Material
The wax tree is then coated with a ceramic slurry to form the mold. The ceramic slurry is made by mixing silica sol with a refractory material such as zircon or alumina. The mold is then dried and heated to remove the wax pattern and harden the ceramic shell.
Gelling
After the mold is heated, it is gelled to remove any remaining wax residue and strengthen the ceramic shell. Gelling is done by heating the mold to a temperature that causes the wax residue to melt and flow out of the mold. The mold is then cooled to solidify the ceramic shell.
Ceramic Shell
The final step in the silica sol lost wax steel casting process is to pour molten steel into the ceramic shell. The ceramic shell is designed to withstand the high temperature of the molten steel without cracking or deforming. After the steel has solidified, the ceramic shell is broken off, and the steel casting is removed.
In conclusion, the silica sol lost wax steel casting process is a precision casting method that produces high-quality steel castings with excellent dimensional accuracy and surface finish. This process involves creating wax patterns, molding material, gelling, and ceramic shells. By following these steps, manufacturers can produce steel castings that meet the highest standards of quality and performance.
Metals Used in Silica Sol Lost Wax Steel Casting
Silica sol lost wax steel casting is a precision casting process that can produce intricate and high-quality metal parts with an excellent surface finish. The process involves creating a wax pattern, coating it with a ceramic shell, melting the wax out of the shell, and then pouring molten metal into the cavity. The ceramic shell is then broken away to reveal the finished metal part. This process is highly customizable, allowing for the production of a wide range of metal parts with different shapes, sizes, and properties.
Steel Alloys
Steel alloys are commonly used in silica sol lost wax steel casting due to their excellent strength, toughness, and wear resistance. Steel alloys are a combination of iron and other elements such as carbon, manganese, nickel, and chromium. The addition of these elements can improve the mechanical properties of the steel, making it suitable for various applications. Some common steel alloys used in silica sol lost wax steel casting include:
- Carbon steel: A type of steel that contains carbon as the main alloying element. Carbon steel is known for its strength and hardness and is commonly used in applications that require high wear resistance.
- Alloy steel: A type of steel that contains other alloying elements in addition to carbon. Alloy steel can be customized to have specific properties such as high strength, corrosion resistance, and heat resistance.
Stainless Steel
Stainless steel is a type of steel that contains chromium and other alloying elements such as nickel and molybdenum. Stainless steel is known for its excellent corrosion resistance and is commonly used in applications that require high hygiene standards such as food processing and medical equipment. Silica sol lost wax steel casting can produce high-quality stainless steel castings with excellent surface finish and dimensional accuracy.
Bronze
Bronze is an alloy of copper and other elements such as tin, aluminum, and nickel. Bronze is known for its excellent corrosion resistance, low friction, and high wear resistance. Silica sol lost wax steel casting can produce high-quality bronze castings with intricate details and an excellent surface finish.
Brass
Brass is an alloy of copper and zinc. Brass is known for its excellent corrosion resistance, low friction, and high thermal conductivity. Silica sol lost wax steel casting can produce high-quality brass castings with excellent surface finish and dimensional accuracy.
Carbon Steel
Carbon steel is a type of steel that contains carbon as the main alloying element. Carbon steel is known for its strength and hardness, and is commonly used in applications that require high wear resistance. Silica sol lost wax steel casting can produce high-quality carbon steel castings with excellent surface finish and dimensional accuracy.
Alloy Steel Casting
Alloy steel casting is a type of steel casting that contains other alloying elements in addition to carbon. Alloy steel casting can be customized to have specific properties such as high strength, corrosion resistance, and heat resistance. Silica sol lost wax steel casting can produce high-quality alloy steel castings with excellent surface finish and dimensional accuracy.
In conclusion, silica sol lost wax steel casting can produce high-quality metal parts with excellent surface finish and dimensional accuracy. The process is highly customizable, allowing for the production of a wide range of metal parts with different shapes, sizes, and properties. Steel alloys, stainless steel, bronze, brass, carbon steel, and alloy steel casting are some of the common metals used in silica sol lost wax steel casting.
Other Types of Casting Processes
In addition to silica sol lost wax casting, there are several other types of casting processes commonly used in manufacturing. Each process has its own unique advantages and disadvantages, making them suitable for different applications. Some of the most popular alternative casting processes include green sand casting, resin-coated sand casting, water glass casting, lost foam casting, and high-pressure die casting.
Green Sand Casting
Green sand casting is a popular casting process that uses a mixture of sand, clay, and water to create a mold. The sand mixture is packed around a pattern, which is then removed to create a cavity in the sand. Molten metal is poured into the cavity, and once it cools and solidifies, the sand is broken away to reveal the finished casting.
Green sand casting is a cost-effective method for producing large, complex parts with good surface finish and dimensional accuracy. However, the process can be time-consuming and requires a significant amount of space for the sand molds.
Resin Coated Sand Casting
Resin-coated sand casting is similar to green sand casting but uses a resin binder instead of clay. The sand is coated with a resin and catalyst, which hardens when heated. The resulting mold is stronger and more durable than a green sand mold, making it suitable for high-volume production.
Resin coated sand casting is also capable of producing complex shapes with good dimensional accuracy and surface finish. However, the process can be more expensive than green sand casting and requires additional equipment for the resin coating.
Water Glass Casting
Water glass casting, also known as sodium silicate casting, uses a mixture of water glass and quartz sand to create a mold. The water glass hardens when exposed to carbon dioxide, creating a strong, durable mold. Molten metal is poured into the mold, and once it cools and solidifies, the mold is broken away to reveal the finished casting.
Water glass casting is a cost-effective method for producing small to medium-sized parts with good dimensional accuracy and surface finish. However, the process can be time-consuming and requires a significant amount of space for the molds.
Lost Foam Casting
Lost foam casting, also known as evaporative pattern casting, uses a foam pattern coated with a refractory material to create a mold. The foam pattern is vaporized when the molten metal is poured into the mold, leaving behind a cavity for the metal to fill. Once the metal cools and solidifies, the mold is broken away to reveal the finished casting.
Lost foam casting is a cost-effective method for producing complex shapes with good dimensional accuracy and surface finish. However, the process can be more expensive than other casting methods and requires additional equipment for the foam patterns.
High-Pressure Die Casting
High pressure die casting uses a metal die to create a mold, which is then filled with molten metal under high pressure. Once the metal cools and solidifies, the mold is opened and the finished casting is removed.
High pressure die casting is a fast and efficient method for producing large quantities of small to medium-sized parts with good dimensional accuracy and surface finish. However, the process can be expensive and requires specialized equipment for the metal dies.
Overall, each casting process has its own unique advantages and disadvantages, making it important to choose the right process for the application.
Comparison of Silica Sol Lost Wax Steel Casting with Other Casting Processes
Silica sol lost wax steel casting is a popular investment casting process that is widely used in the manufacturing industry. This process has several advantages over other casting processes such as gray iron, ductile iron or nodular iron, red copper, vacuum casting, and die casting.
Advantages of Silica Sol Lost Wax Steel Casting
- High Accuracy: Silica sol lost wax steel casting produces high-precision components with excellent surface finish. This process can achieve a dimensional tolerance grade of up to CT4 – CT6.
- Complex Shapes: This process can produce complex shapes with thin walls and intricate details that are difficult to achieve with other casting processes.
- Versatility: Silica sol lost wax steel casting can be used to cast a wide range of metals and alloys, including stainless steel, carbon steel, and high-performance alloys.
- Repeatable Production: This process is suitable for repeatable production of net shape components. It is ideal for small and medium-sized castings.
- Low Cost: Silica sol lost wax steel casting is a cost-effective process that offers a lower cost per unit than other casting processes such as die casting.
Comparison with Other Casting Processes
- Gray Iron: Silica sol lost wax steel casting offers better accuracy and surface finish than gray iron casting. It is also more versatile and can be used to cast a wider range of metals and alloys.
- Ductile Iron or Nodular Iron: Silica sol lost wax steel casting produces components with higher accuracy and surface finish than ductile iron or nodular iron casting. It is also more versatile and can be used to cast a wider range of metals and alloys.
- Red Copper: Silica sol lost wax steel casting is not suitable for casting red copper. Other casting processes such as sand casting or die casting are better suited for red copper.
- Vacuum Casting: Silica sol lost wax steel casting produces components with higher accuracy and surface finish than vacuum casting. It is also more versatile and can be used to cast a wider range of metals and alloys.
- Die Casting: Silica sol lost wax steel casting offers better accuracy and surface finish than die casting. It is also more versatile and can be used to cast a wider range of metals and alloys. However, die casting is faster and more suitable for high-volume production.
In summary, silica sol lost wax steel casting is a versatile and cost-effective investment casting process that offers high accuracy, excellent surface finish, and the ability to produce complex shapes with thin walls and intricate details. It is suitable for small and medium-sized castings and can be used to cast a wide range of metals and alloys.
Factors Affecting the Cost of Silica Sol Lost Wax Steel Casting
The cost of silica sol lost wax steel casting depends on various factors. Here are some of the key factors that can affect the cost of this process:
1. Size of the Casting
The size of the casting is a significant factor that affects the cost of silica sol lost wax steel casting. Larger castings require more material and more time to produce, which increases the cost. In contrast, smaller castings require less material and less time, which reduces the cost.
2. Complexity of the Design
The complexity of the design also affects the cost of silica sol lost wax steel casting. Castings with intricate designs require more time and effort to produce, which increases the cost. On the other hand, simpler designs require less time and effort, which reduces the cost.
3. Temperature and Processes
The temperature and processes used in silica sol lost wax steel casting can also affect the cost. Higher temperatures and more complex processes can increase the cost, while lower temperatures and simpler processes can reduce the cost.
4. Foundry
The foundry used for silica sol lost wax steel casting can also affect the cost. Different foundries may have different overhead costs, labor costs, and material costs, which can affect the overall cost of the casting.
5. Maximum Size
The maximum size of the casting that can be produced using silica sol lost wax steel casting can also affect the cost. Castings that exceed the maximum size limit may require additional steps or processes, which can increase the cost.
In summary, the cost of silica sol lost wax steel casting depends on various factors, including the size of the casting, complexity of the design, temperature and processes, foundry, and maximum size. By considering these factors, manufacturers can optimize the cost of silica sol lost wax steel casting and produce high-quality castings at a reasonable price.
Applications of Silica Sol Lost Wax Steel Casting
Silica sol lost wax steel casting has a wide range of applications in various industries. Here are some of the most common applications of silica sol lost wax steel casting:
Casting Parts
Silica sol lost wax steel casting is widely used for creating complex and intricate parts that are difficult to manufacture using other casting methods. This method allows for the creation of parts with high dimensional accuracy and excellent surface finish.
Ferrous and Non-Ferrous Materials for Investment Casting
Silica sol lost wax steel casting is suitable for a wide range of ferrous and non-ferrous materials, including stainless steel, carbon steel, and high-temperature heat-resistant alloys. This casting method is particularly useful for creating parts that require high strength and corrosion resistance.
High-Temperature Heat-Resistant Alloys
Silica sol lost wax steel casting is an ideal method for creating high-temperature heat-resistant alloy parts, such as turbine blades, exhaust manifolds, and other components that are exposed to extreme heat. This method allows for the creation of parts with excellent dimensional stability and resistance to thermal fatigue.
Stainless Steel Casting
Silica sol lost wax steel casting is widely used for creating stainless steel parts, such as valve bodies, impellers, and other components that require high corrosion resistance and excellent surface finish. This method allows for the creation of parts with high dimensional accuracy and excellent surface finish.
Silica sol lost wax steel casting is a versatile and reliable casting method that is widely used in various industries. This method allows for the creation of complex and intricate parts with high dimensional accuracy and excellent surface finish.
Conclusion
Silica sol lost wax steel casting is a precision casting process that is widely used in the foundry industry. It is an excellent process technology that produces castings with higher dimensional accuracy and surface finish. Silica sol is usually used for shell building during the lost wax casting process due to its high accuracy and precision.
The silica sol precision lost wax investment casting process is suitable for the repeatable production of net shape components from a variety of different metals and high-performance alloys. Although generally used for small castings, this process has been used to produce complete aircraft door frames, with steel castings of up to 500 kgs.
Silica sol lost wax steel casting is mainly used for precision casting of stainless steel, carbon steel, and alloy steel. The metal castings produced by silica sol casting have fine surfaces and high accuracy, and the general dimensional tolerance grade is up to CT4 – CT6.
Overall, silica sol lost wax steel casting is a reliable and precise method for producing metal castings. Its high accuracy and precision make it an ideal choice for applications that require tight tolerances and fine surface finishes. With its versatility and ability to produce complex shapes and intricate details, silica sol lost wax steel casting is a valuable tool for the foundry industry.
